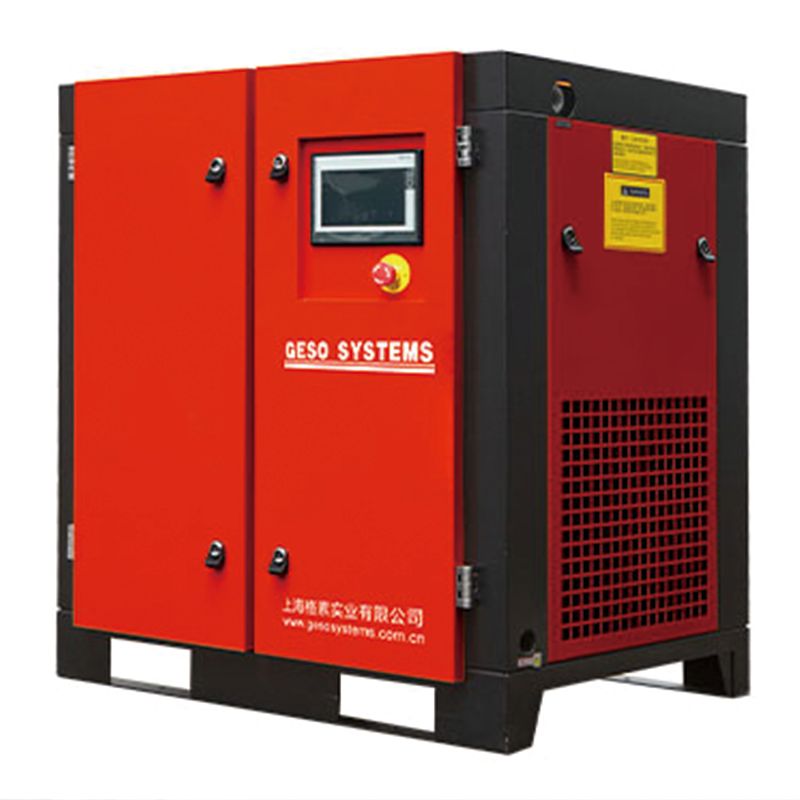

The single-stage compression power frequency screw air compressor of Geso has low loss, large displacement, high exquisite design and manufacture, reduces the workload of daily maintenance, perfectly replaces the reciprocating air compressor, can realize intelligent remote control, and makes tedious work easily.

Screw Compressor Product Features ：

■ Adopting 1:1 direct drive,low noise,low loss,more effective protection of the motor torque.

■ New high-quality sound insulation materials and soundproof boxes to ensure that

■ the working noise is within the ideal range,creating a quiet and comfortable working

■ environment for users.

■ Reduced transmission components,stable equipment performance,low maintenance costs.

■ Compact design,simple and generous appearance,low space occupation.

■ Removable air guide for easy maintenance.

Intelligent control system for easy operation.

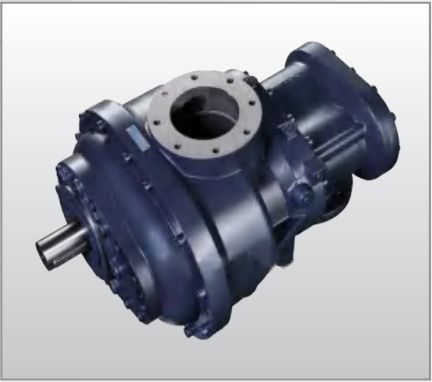

Air End：

■ Geso air compressor element selection of 40CrA high-quality alloy steel,with wear-resistant and corrosion-resistant and other high-quality performance.

■ Adopting BAES rotor profile developed by BAE Group,the third generation 5:6 asym metric tooth rotor,balanced force during high-speed operation,rotor tangential speed≤35m/s,rotor clearance between the rotors to maintain 0.003INCH,the same power section compressor element can save energy 10-15%.

■ CNC 5-axis rotor grinding machines are used for the production of Geso rotors,and the machining of polyhedra and curved surfaces is automated with high precision

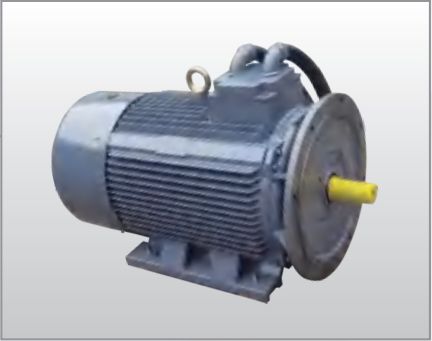

Asynchronous Motors

■ Motor stator using die-casting silicon steel plate,diecasting length in the motor of 20%-40%,significantly improve the performance of the motor.

■ Motor windings with F-class insulation 155 ℃,B-class temperature rise assessment, using IP55 or more protection level.

■ Customized imported SKF bearings to reduce noise and heat.Ensure product reliability

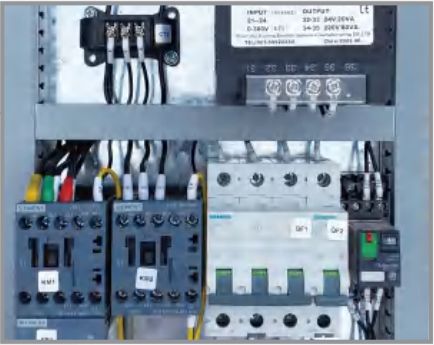

Screw Compressor Control and Electrical System

■ RS485 communication mode transmission communication,data can be collected to integrate the user's central console to monitor.

■ the intelligent controller to calculate the dynamic adjustment of the control accuracy,to achieve accurate control of the torque.

■ Cell phone,computer real-time display of operating parameters,maintenance remind ers,energy management, data analysis,etc.

■ using Siemens/ABB and other brands of electrical systems.

Model	Power (kw)	Working Pressure (Mpa)	Air Delivery (m3/min)	Dimensions (mm)	Outlet Pipe Diameter	Weight (kg)
BAE-7A	7.5	0.8	1.3	865570825	G1/2	170
		1.0	1.0
		1.3	0.9
BAE-11A	11	0.8	1.8	1050650950	G3/4	270
		1.0	1.6
		1.3	1.1
BAE-15A	15	0.8	2.5	1050650950	G3/4	280
		1.0	2.2
		1.3	1.8
BAE-18A	18.5	0.8	2.9	12008501100	G1	390
		1.0	2.7
		1.3	2.3
BAE-22A	22	0.8	3.9	12008501100	G1	400
		1.0	3.2
		1.3	3.1
BAE-30A	30	0.8	5.4	12008501100	G1 1/4	480
		1.0	4.3
		1.3	3.8
BAE-37A	37	0.8	6.6	13509501225	G1 1/2	580
		1.0	6.2
		1.3	5.6
BAE-45A	45	0.8	8.0	13509501225	G1 1/2	720
		1.0	6.8
		1.3	5.9
BAE-55A	55	0.8	10.5	165011701440	G2	1100
		1.0	8.9
		1.3	7.7

Note:A:Air-cooled W:Water-cooled

The Company Has The Right To Change The Design For The Continuous Improvement Of The Products ,and The Parameters Will Be Changed Without Prior Notice.

Model	Power (kw)	Working Pressure (Mpa)	Air Delivery (m3/min)	Dimensions (mm)	Outlet Pipe Diameter	Weight (kg)
BAE-75A/W	75			180012001570	G2	1200
		1.0	12.5
		1.3	9.8
BAE-90A/W	90	0.8	16.5	180012001570	G2	1300
		1.0	13.0
		1.3	12.5
BAE-110A/W	110	0.8	21.0	220014001800	DN65	2200
		1.0	17.0
		1.3	15.0

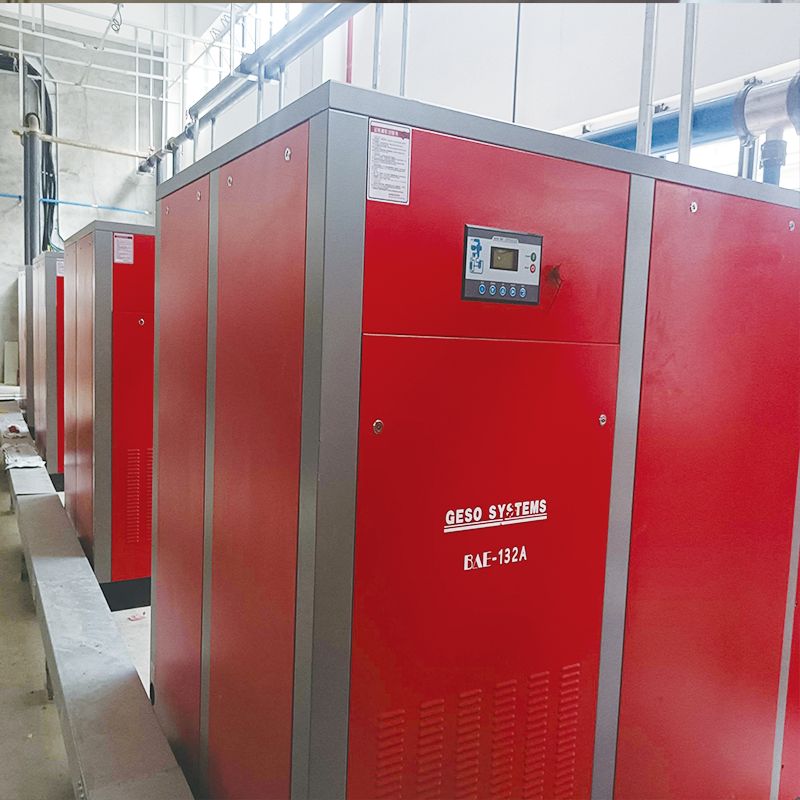

BAE-132A/W	132	0.8	23.5	220014001800	DN65	2500
		1.0	20.6
		1.3	16.5
BAE-160A/W	160	0.8	29.7	273017101950	DN80	2950
		1.0	25.5
		1.3	21.0
BAE-185A/W	185	0.8	32.8	273017101950	DN80	3200
		1.0	29.0
		1.3	25.0
BAE-200A/W	200	0.8	34.5	273017101950	DN80	3400
		1.0	32.5
		1.3	29.0
BAE-220A/W	220	0.8	36.3	297017001900	DN80	4200
		1.0	33.5
		1.3	29.8
BAE-250A/W	250	0.8	44.5	330021502250	DN100	4400
		1.0	36.5
		1.3	32.5

Note:A:Air-cooled W:Water-cooled

The Company Has The Right To Change The Design For The Continuous Improvement Of The Products,and The Parameters Will Be Changed Without Prior Notice.
