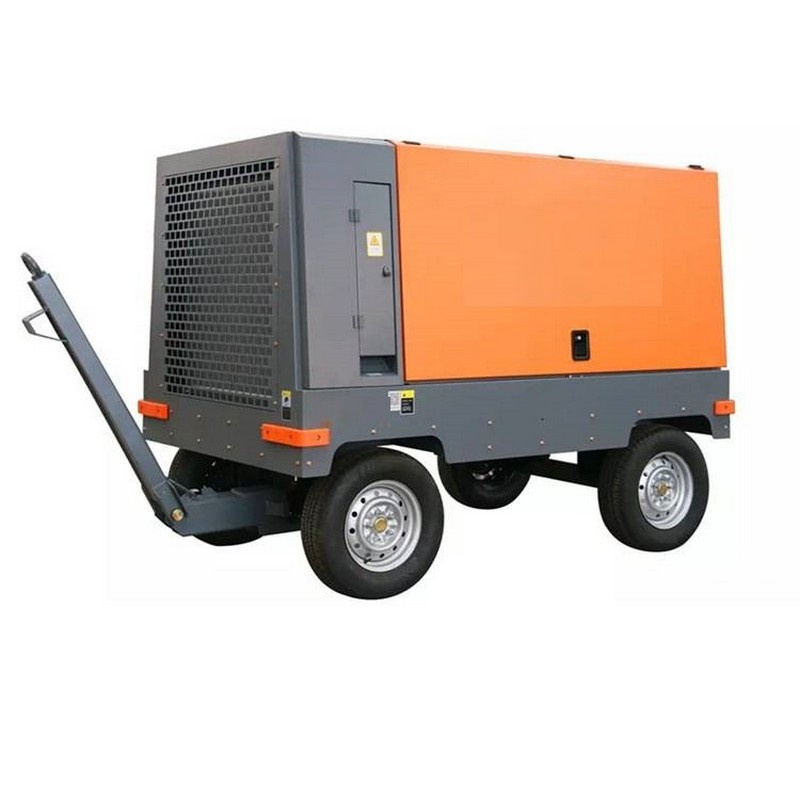

Diesel portable Air Compressor

Geso medium and bigh pressure reciprocating BG series air compressors are available in four categories: skid-mounted,mobile, electric,diesel (oil),mainly used in oil extraction in pipeline pressure testing, sweeping line, membrane nitrogen, thermal mining, coal,.，gas supply station and other engineering projects,and its performance is excellent. Geso is a global manufacturer and supplier of Diesel portable Air Compressor. We are engaged in air separation system equipment for many years, and are committed to the research and production of air compressor systems. We can customize non-standard products and have a good price advantage. Our products cover the whole world. We look forward to being your long-term partner.

Send Inquiry

Product Description
Technical Parameter

Gesosystems® is China manufacturer & supplier who mainly produces Diesel portable Air Compressor with many years of experience. Hope to build business relationship with you. Geso medium and high pressure reciprocating BG series air compressor has been recognized and trusted by the majority of isers for its stable performance and durability.

Oil-free Scroll Air Compressor Details

Designed for low pressure, medium pressure, high pressure and ultra-high pressure according to different working conditions, the exhaust volume of the piston compressor remains unchanged when the exhaust pressure fluctuates at equal rotational speeds.

Simple structure: Easy to move,operate and maintain.

High compression efficiency: The process of compressing gas in a piston compressor is a closed system with bigh compression efficiency.

Model	Air Delivery (m3/min)	Working Pressure (Mpa)	Moter Power (KW)	Compression stages	Transmission mode	Weight (kg)	Remark
BG-0.6/30	0.6	3	7.5	2-stage	Belt	325	With gas storage tank or fixed
BG-0.7/30	0.7	3	7.5	2-stage	Belt	325	With gas storage tank or fixed
BG-0.8/30	0.8	3	7.5	2-stage	Belt	330	With gas storage tank or fixed
BG-1.0/30	1	3	11	2-stage	Belt	430
BG-1.3/30	1.3	3	15	2-stage	Belt	460
BG-2.6/30	2.6	3	2*15	2-stage	Belt	1050	Fixed combinations
BG-2.3/30	2.3	3	22	2-stage	Belt	750
BG-4.6/30	4.6	3	2*22	2-stage	Belt	1550	Fixed combinations
BG-6.9/30	6.9	3	3*22	2-stage	Belt	2200	Fixed combinations
BG-0.8/40	0.8	4	11	3-stage	Belt	550	With gas storage tank
BG-1/40	1.0	4	11	3-stage	Belt	550	With gas storage tank
BG-2/40	2.0	4	22	3-stage	Belt	850
BG-2.2/40	2.2	4	22	3-stage	Belt	850
BG-4/40	4.0	4	2*22	3-stage	Belt	1850	Fixed combinations
BG-4.4/40	4.0	4	2*22	3-stage	Belt	1850	Fixed combinations
BG-3/40	3.0	4	3*11	3-stage	Belt	1350	Fixed combinations
BG-6/40	6.0	4	3*22	3-stage	Belt	2700	Fixed combinations
BG-0.6/60	0.6	6	11	3-stage	Belt	550	With gas storage tank
BG-0.8/60	0.8	6	11	3-stage	Belt	550	With gas storage tank
BG-1.2/60	1.2	6	2*11	3-stage	Belt	1000	Fixed combinations
BG-1.6/60	1.6	6	2*11	3-stage	Belt	1000	Fixed combinations
BG-2/60	2.0	6	3*11	3-stage	Belt	1350	Fixed combinations
BG-3/60	3.0	6	37	3-stage	Direct connect	2200

Note: Multi-unit is 1 row in series, if you need to change the size, it can be arranged into 2 rows, the size is arranged separately according to the demand; special models can provide customized service.

The company has the right to change the design for the continuous improvement of the products,and the parameters will be changed without prior notice.

Model	Air Delivery (m3/min)	Working Pressure (Mpa)	Moter Power (KW)	Compression stages	Transmission mode	Weight (kg)	Remark
BG-0.7/70	0.7	7	11	3-stage	Belt	550
BG-1.2/70	1.2	7	2*11	3-stage	Belt	1000	Fixed combinations
BG-3/80	3.0	8	45	4-stage	Direct connect	2300
BG-0.8/250	0.8	25	18.5	4-stage	belt	1100	boxed
BG-5.5/100	5.5	10	75	4-stage	Direct connect	2600
BG-1.7/150	1.7	15	30	4-stage	Direct connect	900
BG-5/150	5.0	15	75	4-stage	Direct connect	2600
BG-1.5/250	1.5	25	30	4-stage	Direct connect	900
BG-5/250	5.0	25	75	4-stage	Direct connect	2600
BG-4/250	4.0	25	75	4-stage	Direct connect	2500
BG-0.1/300	0.1	30	2.2	4-stage	belt	40
BG-0.1/300	0.1	30	Gasoline engine	4-stage	belt	39	Gasoline engine:HONDAGX160
BG-0.2/300	0.2	30	4	3-stage	belt	150
BG-0.3/300	0.3	30	5.5	3-stage	belt	160
BG-0.4/300	0.4	30	7.5	3-stage	belt	180
BG-0.8/300	0.8	30	18.5	4-stage	belt	1100
BG-1/300	1.0	30	30	4-stage	Directconnect	1000
BG-1/350	1.0	35	30	4-stage	belt	1800	Advanced Configuration
BG-1.5/350	1.5	35	37	4-stage	belt	1900	Advanced Configuration
BG-2/350	2.0	35	45	5-stage	Direct connect	2500
BG-3/350	3.0	35	55	5-stage	Direct connect	2600
BG-1/400	1.0	40	30	5-stage	belt	2200
BG-2/400	2.0	40	55	5-stage	Direct connect	2500

The company has the right to change the design for the continuous improvement of the products,and the parameters will be changed without prior notice.
