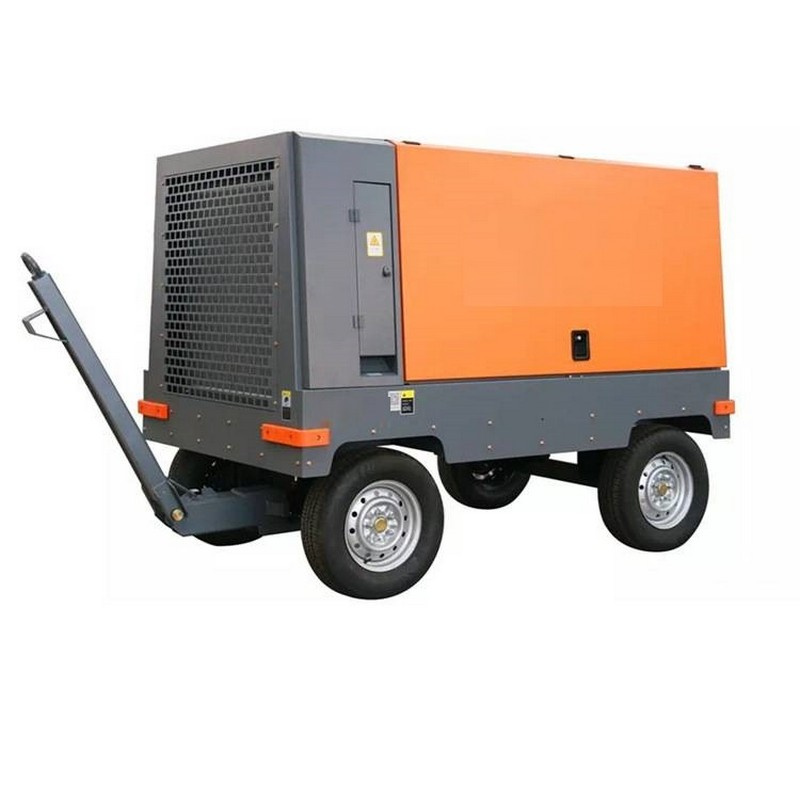

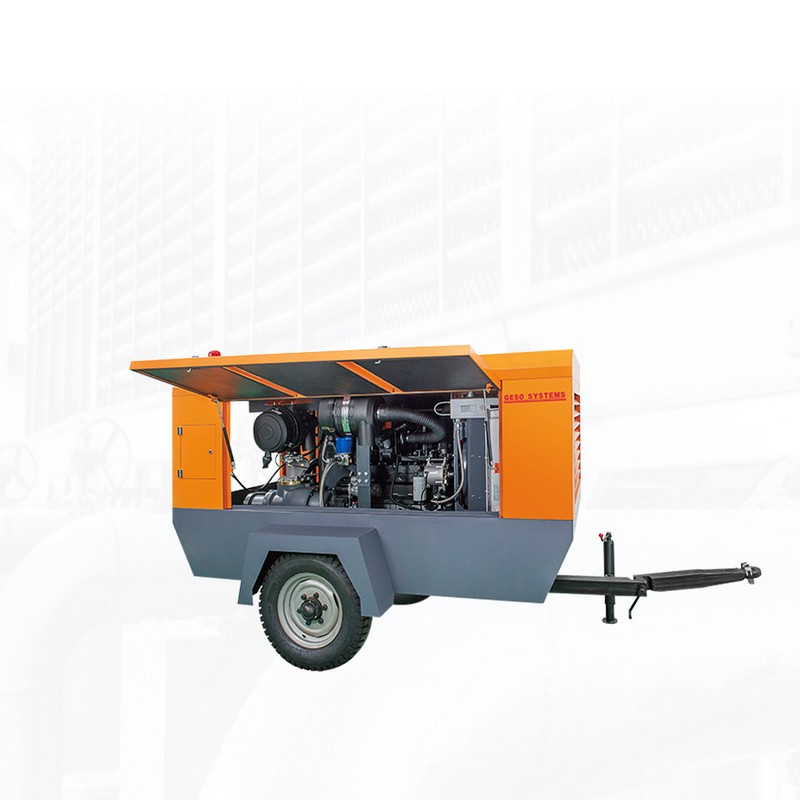

The diesel portable compressor utilizes a high-quality, high-efficiency screw compressor and power drive system. Its fully pneumatically controlled operation is highly responsive, allowing for continuous automatic control of the exhaust volume within a 0-100% range. The machine boasts stable and reliable performance, a unique design, and an optimized system, resulting in larger exhaust volume, longer service life, and lower noise levels. A nationwide after-sales service network ensures users receive prompt and comprehensive support.
The diesel portable compressor utilizes a high-quality, high-efficiency screw compressor and power drive system. Its fully pneumatically controlled operation is highly responsive, allowing for continuous automatic control of the exhaust volume within a 0-100% range. The machine boasts stable and reliable performance, a unique design, and an optimized system, resulting in larger exhaust volume, longer service life, and lower noise levels. A nationwide after-sales service network ensures users receive prompt and comprehensive support.
Meticulously designed to achieve superior energy savings, reducing fuel consumption by up to 30%.
Operating costs account for up to 80% of the total cost during the lifecycle of a diesel mobile compressor. Therefore, reducing fuel costs during operation is crucial for minimizing the overall cost of ownership. As a result, cost savings are a key focus of the research and development of Gesu brand diesel mobile compressors.
Dual-polar energy-saving main unit brand offers powerful performance, and is more intelligent and user-friendly.More stable and reliable, adaptable to various working conditions, more environmentally friendly and healthier
| Model |
Gas volume (m³/min) |
Pressure (MPa) |
diesel engine |
power (KW) |
Standard operating conditions |
fuel tank capacity L |
Exhaust ball valve |
Tire specifications |
Overall dimensions(mm) |
weight(kg) |
altitude(m) |
|
BACY-19/21-21/18 |
19/21 |
2.1/1.8 |
Yuchai/Cummins |
191/194 |
Dual working condition |
350 |
G2"/G11/2" |
Two-wheel/Four-wheel |
3200 x 2000 x 2450 |
3500 |
3000 |
|
BACY-17/18-18/15 |
17/18 |
1.8/1.5 |
Cummins |
154/157 |
Dual working condition |
230 |
G1 1/2"/G1" |
Two-wheel/Four-wheel |
3050 x 1605 x 2042 |
2700 | 3000 |
|
BACY-16/16-18/10 |
16/18 |
1.6/1.0 |
Cummins |
154 |
Dual working condition |
230 |
G1 1/2"/G1" |
Two-wheel/Four-wheel |
3050 x 1605 x 2042 |
2500 |
3000 |
|
BACY-14/18-17/12 |
14/17 |
1.8/1.2 |
Yuchai |
140 |
Dual working condition |
230 |
G1 1/2"/G1" |
Two-wheel/Four-wheel |
3050 x 1605 x 2042 |
2400 | 3000 |
|
BACY-15/22 |
15 |
2.2 |
Cummins |
157 |
Single working condition |
230 |
G1 1/2"/G1" |
Two-wheel/Four-wheel |
3050 x 1605 x 2042 |
2700 | 3000 |
|
BACY -15/13 |
15 |
1.3 |
Cummins |
132 |
Single working condition |
230 |
G1 1/2"/G1" |
four wheels |
2927 x 1525 x 2182 |
2500 | 3000 |
|
BACY -18/17 |
18 |
1.7 |
Cummins |
194 |
Single working condition |
165 |
G1 1/2"/G2" |
four wheels |
3200 x 1802 x 2460 |
3500 | 3000 |
|
BACY -6/8 |
6 | 0.8 |
Xichai/Yuchai/Yunnei |
41/60/58 |
Single working condition |
50 |
G1 1/2" |
two rounds |
2540 x 1460 x 1548 |
1000 | 3000 |
|
BACY -8/8 |
8 | 0.8 |
Yuchai |
59 |
/ |
90 |
G1"/G1 1/2" |
two rounds |
2441 x 1806 x 1900 |
1650 | 3000 |
|
BACY -10/10 |
10 | 1 |
Yuchai |
88 | / | 120 |
G1"/G1/2" |
two rounds |
3084 x 1806 x 2059 |
1800 | 3000 |
|
BACY -12/10 |
12 | 1 |
Yuchai |
88 | / | 120 |
G1 1/2" |
two rounds |
2441 x 1806 x 2059 |
1800 | 3000 |
