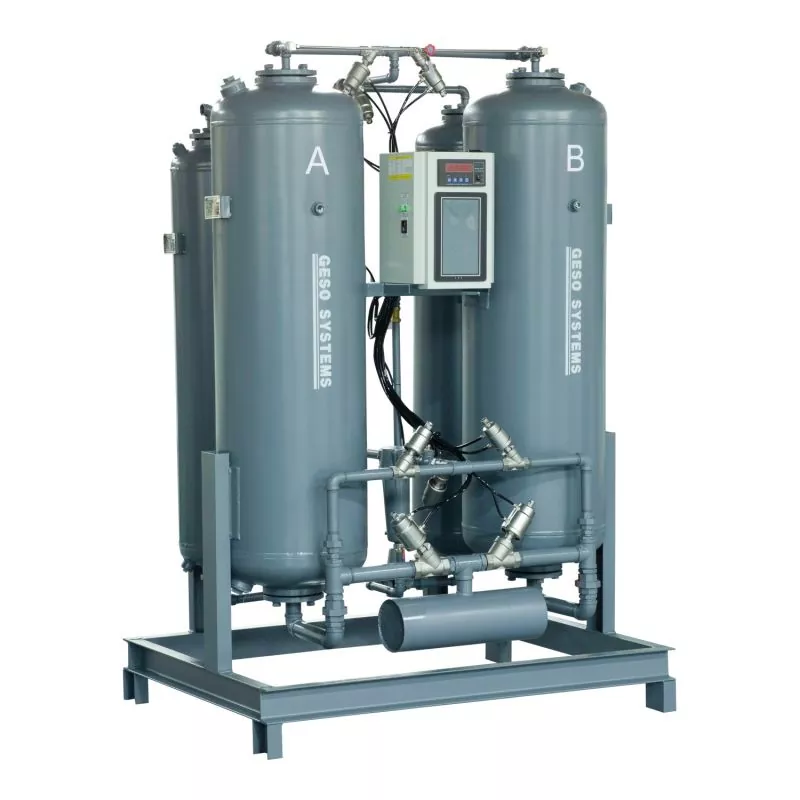

Pressure Swing Adsorption Nitrogen Generator Nitrogen Purity: 99.9%

The PSA nitrogen generator uses clean compressed air as the feed gas and carbon molecular sieve (CMS) as the adsorbent. Based on Pressure Swing Adsorption (PSA) technology, it separates nitrogen from oxygen by utilizing the different adsorption capacities and diffusion rates of oxygen and nitrogen molecules in CMS. During operation, the PLC control system automatically switches the adsorption and regeneration cycles through pneumatic valves. Oxygen and other impurities are adsorbed under pressure, while nitrogen is collected as the product gas. By repeating the adsorption and desorption process, the system continuously produces nitrogen with the required purity.

Send Inquiry

■ Geso pressure swing adsorption nitrogen generator fast startup,15-30 minutes to deliver qualified nitrogen gas

■ Fully automatic operation of the equipment, the whole process can be realized unattended

■ Highly efficient molecular sieve loading, tighter, more solid, longer service life

■ Pressure, purity and flow rate are stable and adjustable to meet different needs of customers.

■ Reasonable structure, advanced process, safe and stable, low energy consumption

Pressure swing adsorption nitrogen generator Technicalindicators：

Pressure, purity, and flow rate are stable and adjustable to meet the diferent needs of customers

■ Flow rate:5~ 3000Nm3 /hr

■ Purity: 95%～99.999%

■ Pressure:≤0.8Mpa ( adjustable )

■ Normal pressure dew point: ≤－40℃(lower can be customized)

Note: For lower oxygen content and dew point requireents, a nitrogen purification unit is available as an option.

Process Flow

GSN-99.9 Nitrogen Generator Nitrogen purity: 99.9%

Model	Nitrogen production (Nm³/h)	Effective air consumption (Nm³/min)	Inlet pipe size (DNmm)	Outlet pipe diameter (DNmm)	Host L×W(mm)
GSN10-99.9	10	0.61	15	15	1150×600
GSN20-99.9	20	1.22	25	15	1200×700
GSN30-99.9	30	1.82	25	15	1250×900
GSN40-99.9	40	2.44	25	25	1350×950
GSN50-99.9	50	3.03	32	25	1750×1000
GSN60-99.9	60	3.65	32	25	2150×1100
GSN70-99.9	70	4.26	32	25	2150×1100
GSN80-99.9	80	4.87	40	25	2250×1150
GSN100-99.9	100	6	40	25	2250×1150
GSN150-99.9	150	9	50	32	2500×1150
GSN200-99.9	200	12	50	32	2750×1450
GSN300-99.9	300	18	65	40	3000×1650
GSN400-99.9	400	24	80	50	3100×1700
GSN500-99.9	500	30	80	50	3250×1800
GSN600-99.9	600	37	100	65	3500×2150
GSN700-99.9	700	45	100	65	3500×2150
GSN800-99.9	800	48	125	65	3500×2150
GSN900-99.9	900	56	125	65	3500×2150
GSN1000-99.9	1000	62	150	65	3500×2150
GSN1500-99.9	1500	92	150	80	4400×3150
GSN2000-99.9	2000	124	200	100	5100×3300
GSN3000-99.9	3000	185	300	200	4400×4400
