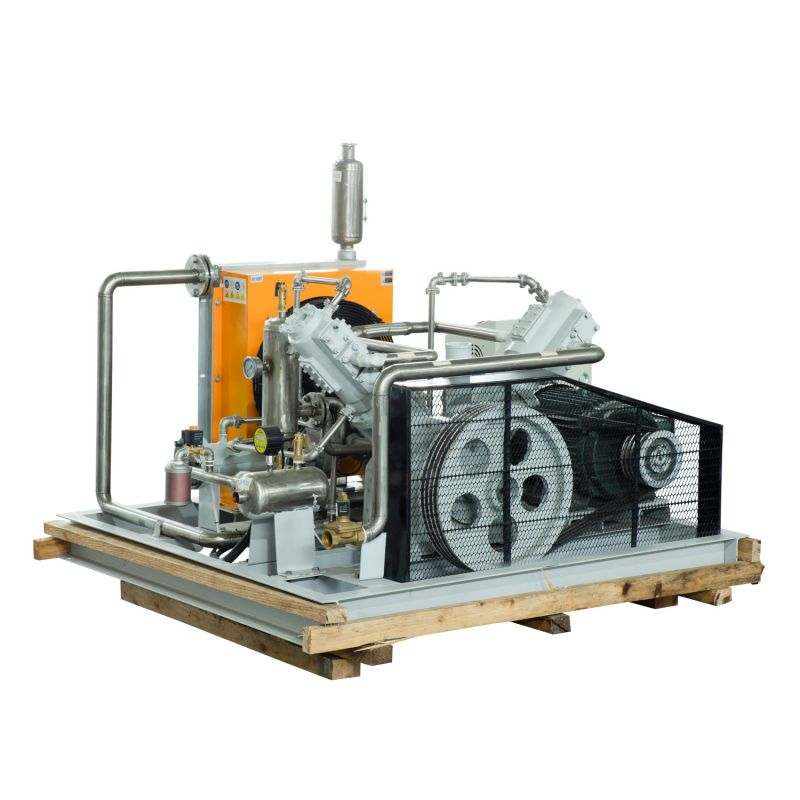

Medium and High Pressure Piston Supercharger

Geso high pressure piston supercharger (high pressure reciprocating supercharger) has four categories: skid-mounted, mobile, electric, diesel (oil) dynamic, mainly used in oil pipeline pressure test, sweeping line, film nitrogen, thermal mining, coal, gas supply station and other engineering projects, its excellent performance.

Send Inquiry

Product Description
Technical Parameter
Product Image

Geso medium and high pressure piston supercharger (medium and high pressure reciprocating supercharger) is generally used together with screw air compressor to make up for the pressure defect that screw air compressor can not reach, and the pressure range is from tens to hundreds of KG.

Medium and high pressure piston supercharger Details：

Designed for low pressure, medium pressure, high pressure and ultra-high pressure according to different working conditions, the exhaust volume of the piston compressor remains unchanged when the exhaust pressure fluctuates at equal rotational speeds.

Simple structure: Easy to move,operate and maintain.

High compression efficiency: The process of compressing gas in a piston compressor is a closed system with bigh compression efficiency.

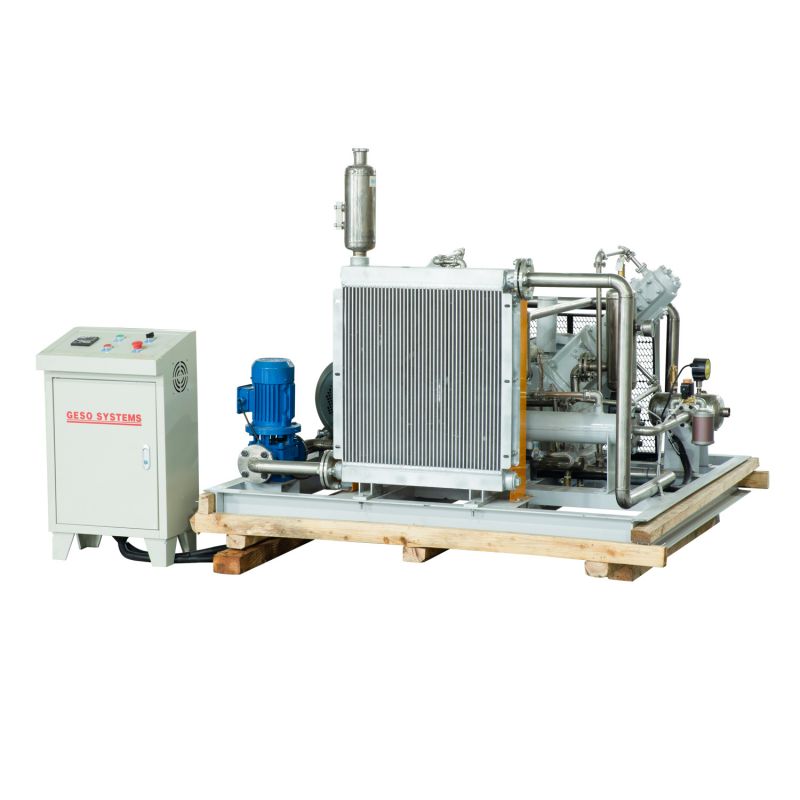

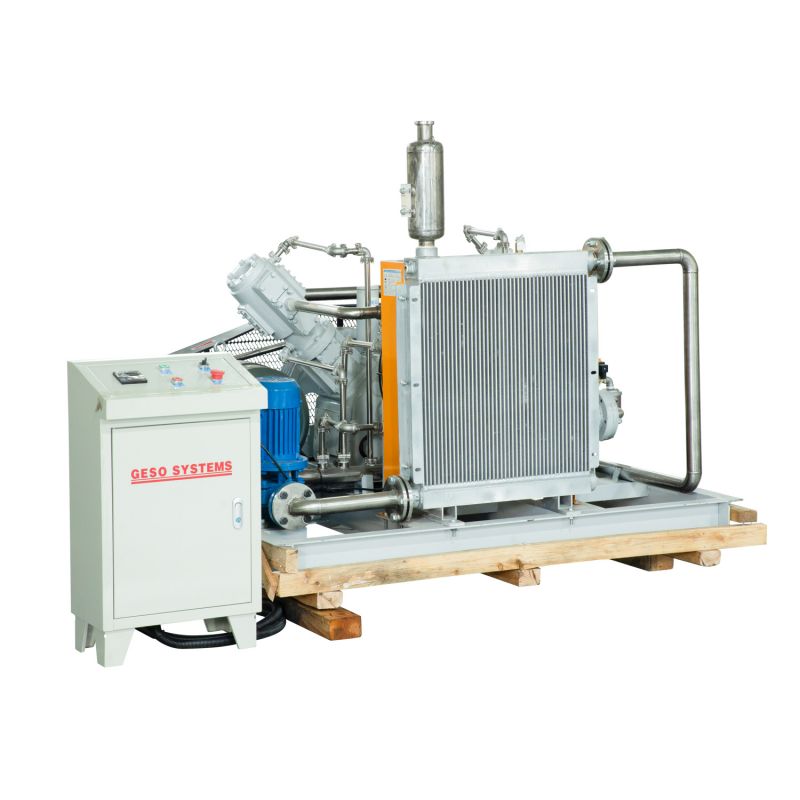

Supercharger controller

The medium and high pressure piston supercharger uses the original Geso controller in the UK.

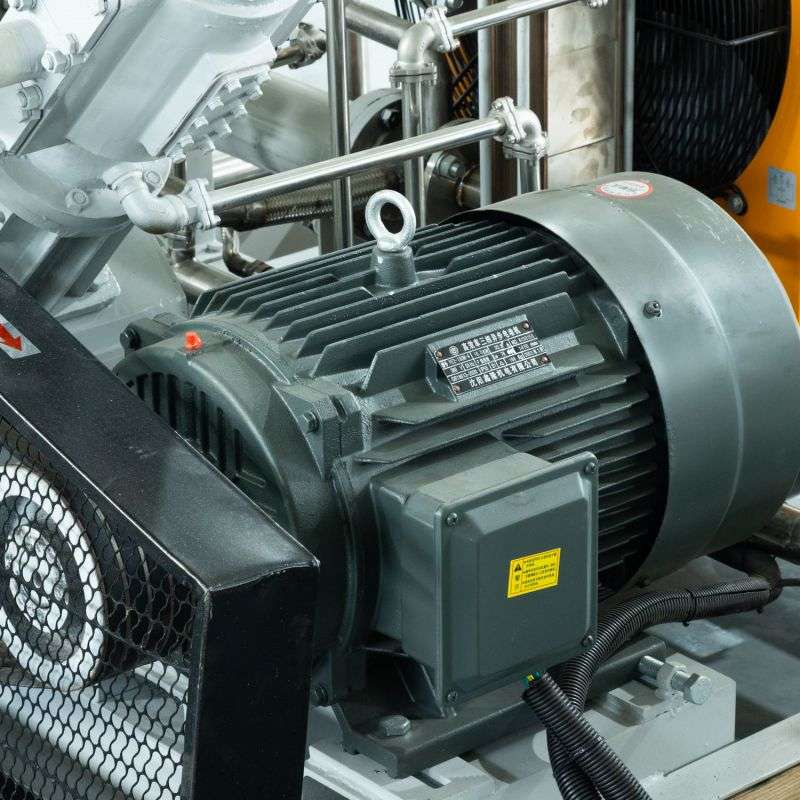

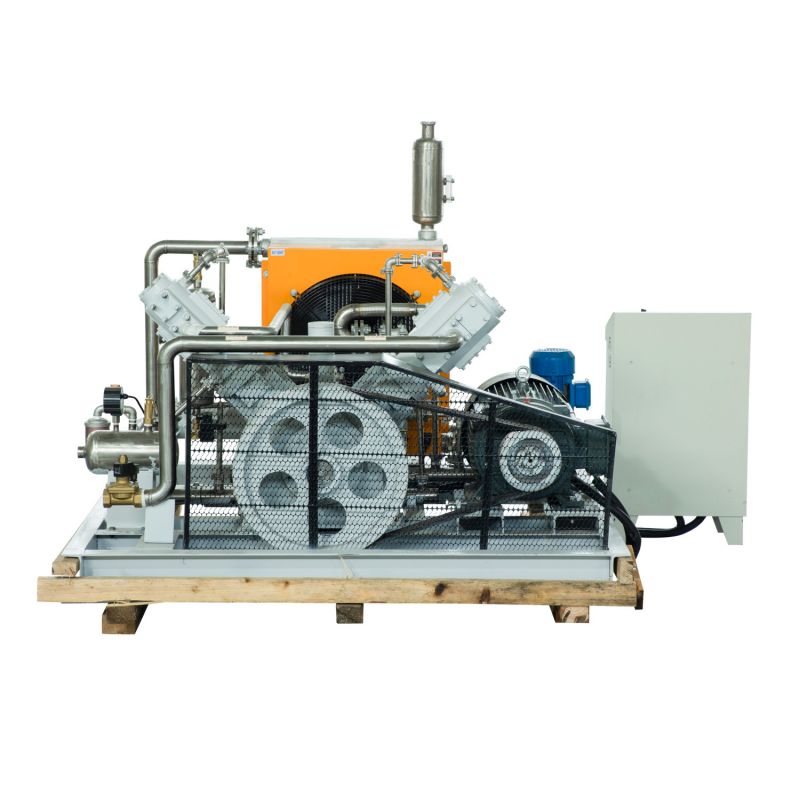

Supercharger main engine

Three-stage conpressor in the two or three-stage compressor are used in differential compression (the same piston to complete the two or three-stage compression for exhaust),compression process of the two or three-stage piston end face offset each other Piston force up to 30%, thus saving energy.

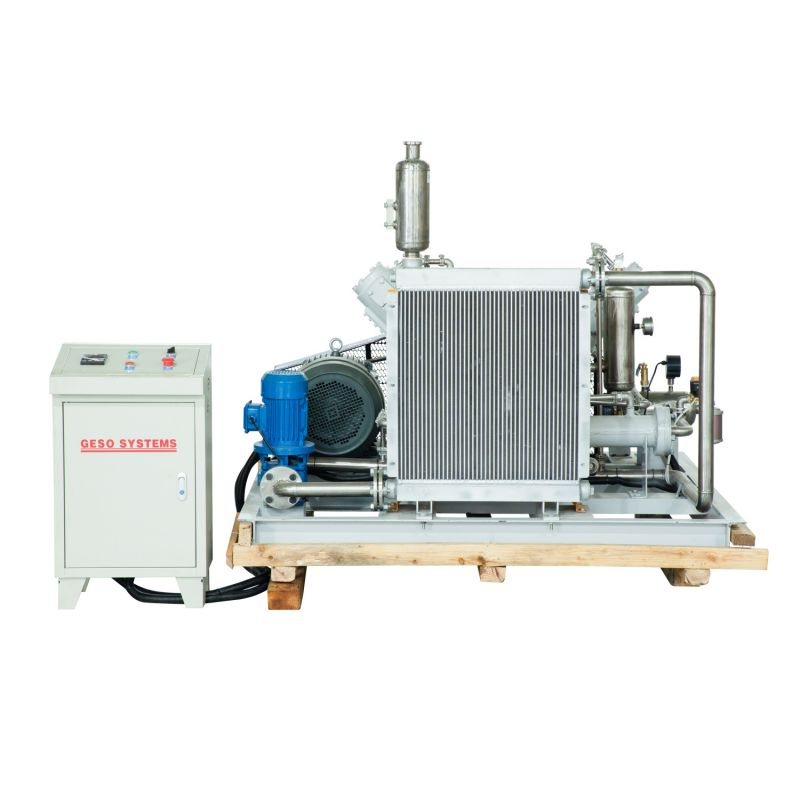

Booster air compressor heat exchanger

Equipped with high efficiency heat exchanger,its cooling area is increased 2.5 times, and the heat exchange efficiency can reach 98% (the temperature of conpressed air after cooling is normal temperature),which is especially suitable for the operation in high temperature areas.

Model	Motor Power （KW）	Working Pressure （Mpa）	Air Delivery （m³/min）	Dimensions（mm）（LWH）			Outlet Pipe Diameter	Weight （kg）
BAEG-37APM	23	1.6	3.5	1810	1200	1550	DN25	1200
	26	2.0
	30	2.5
	33	3.0
	35	3.5
	37	4.0
BAEG-45APM	26	1.6	4.5	1810	1200	1550	DN25	1280
	30	2.0
	33	2.5
	37	3.0
	40	3.5
	45	4.0
BAEG-55APM	33	1.6	6.0	2300	1600	1820	DN40	1800
	37	2.0
	40	2.5
	45	3.0
	50	3.5
	55	4.0
BAEG-75APM	52	1.6	8.5	2500	1760	1800	DN40	2000
	60	2.0
	65	2.5
	70	3.0
	72	3.5
	75	4.0
BAEG-90APM	59	1.6	10.5	3100	1860	2010	DN50	2500
	67	2.0
	74	2.5
	80	3.0
	85	3.5
	90	4.0
BAEG-110 A(W)PM	75	1.6	12.0	3100	1860	2010	DN50	3000
	82	2.0
	90	2.5
	95	3.0
	105	3.5
	110	4.0
BAEG-130 A(W)PM	80	1.6	14.0	3100	1860	2010	DN50	3200
	90	2.0
	110	2.5
	120	3.0
	125	3.5
	130	4.0
BAEG-150 A(W)PM	85	1.6	16.0	3100	1860	2010	DN50	3310
	90	2.0
	110	2.5
	130	3.0
	140	3.5
	150	4.0
BAEG-165 WPM	90	1.6	18.0	3100	1860	2010	DN65	3600
	100	2.0
	120	2.5
	140	3.0
	155	3.5
	165	4.0
BAEG-185WPM	110	1.6	20.0	3500	2000	2300	DN65	3900
	120	2.0
	150	2.5
	165	3.0
	175	3.5
	185	4.0
BAEG-200WPM	120	1.6	23.0	3500	1860	2160	DN65	4200
	150	2.0
	165	2.5
	175	3.0
	185	3.5
	200	4.0
BAEG-220WPM	150	1.6	25.0	3500	1860	2160	DN65	4500
	165	2.0
	175	2.5
	185	3.0
	200	3.5
	220	4.0
BAEG-250WPM	165	1.6	28.0	3500	1860	2160	DN80	4800
	175	2.0
	185	2.5
	200	3.0
	220	3.5
	250	4.0
BAEG-270WPM	175	1.6	30.0	4500	2300	2400	DN80	5100
	185	2.0
	200	2.5
	220	3.0
	250	3.5
	270	4.0
BAEG-315WPM	200	1.6	35.0	4500	2300	2400	DN80	5500
	220	2.0
	230	2.5
	270	3.0
	290	3.5
	315	4.0
BAEG-355WPM	230	1.6	40.0	4500	2300	2400	DN100	5900
	250	2.0
	290	2.5
	315	3.0
	345	3.5
	355	4.0
BAEG-405WPM	280	1.6	45.0	4500	2300	2400	DN100	6200
	300	2.0
	325	2.5
	355	3.0
	385	3.5
	405	4.0
BAEG-450WPM	325	1.6	50.0	4500	2300	2400	DN150	6800
	345	2.0
	365	2.5
	415	3.0
	435	3.5
	450	4.0
BAEG-500WPM	385	1.6	55.0	5000	2400	2500	DN200	7200
	415	2.0
	445	2.5
	465	3.0
	480	3.5
	500	4.0
BAEG-550WPM	435	1.6	60.0	5000	2400	2500	DN200	7500
	465	2.0
	485	2.5
	510	3.0
	540	3.5
	550	4.0
BAEG-600WPM	485	1.6	65.0	5000	2400	2500	DN200	7900
	500	2.0
	540	2.5
	560	3.0
	580	3.5
	600	4.0
BAEG-650WPM	560	1.6	70.0	6000	2400	2800	DN250	8400
	580	2.0
	590	2.5
	620	3.0
	640	3.5
	650	4.0
BAEG-700WPM	600	1.6	75.0	6000	2400	2800	DN250	8700
	630	2.0
	650	2.5
	660	3.0
	680	3.5
	700	4.0
BAEG-750WPM	630	1.6	80.0	6000	2400	2800	DN300	9000
	650	2.0
	660	2.5
	680	3.0
	700	3.5
	750	4.0
BAEG-800WPM	680	1.6	85.0	6000	2400	2800	DN300	9500
	700	2.0
	730	2.5
	750	3.0
	780	3.5
	800	4.0
BAEG-850WPM	750	1.6	90.0	6000	2400	2800	DN300	9800
	760	2.0
	790	2.5
	810	3.0
	830	3.5
	850	4.0
