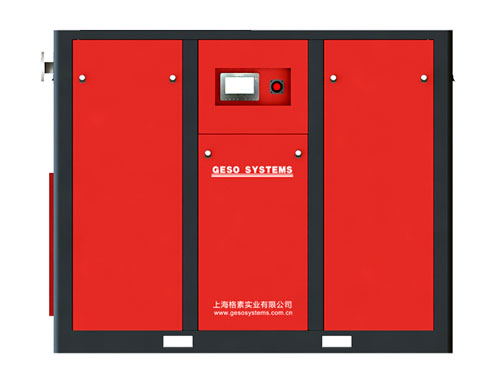

Low Pressure Screw Air Compressor

If your production equipment only requires an air pressure of 0.2-0.5 MPa, please choose a Geso low-pressure screw air compressor. Using a conventional 0.7 MPa air compressor will result in a huge waste of electricity, as it consumes 7% more current for every 0.1 MPa increase (theoretical data). Geso, combining market experience with various air compressors, has developed a series of low-pressure screw air compressors specifically for many specialized industries. These compressors can directly output the low-compressed air you need, avoiding the misuse of high pressure and saving you over 20% in energy consumption.

Geso low-voltage host

■ This low-pressure (2-2 bar) dual-stage compressor is designed for low-pressure air-consuming industries such as textiles, cement, printing and dyeing, and glass. The intermediate coolant injection system reduces air temperature and saves compression power consumption.

■ It has a lower compression ratio than single-stage bearings, less leakage, and lighter bearing load, significantly extending bearing life.

Low-pressure dedicated three filters

■ air filter：The design is enlarged, with an initial filtration area 1.5 times the rated air volume. The air inlet uses an air conditioning filter for filtration, adapting to complex operating conditions.

■ oil filter：It adopts a folded and wound composite process, which results in high filtration efficiency, low loss, and low oil content in the exhaust gas.

■ Customized oil-gas separation system：Custom-designed, enlarged oil-gas separator cylinders and cores ensure clean gas supply and improve gas quality.

■ Piping system：Larger exhaust pipes, oil lines, and optimized airflow systems reduce pressure loss and power consumption.

■ intke valve：The low-pressure dedicated intake valve features an enlarged aluminum alloy cylinder for easier opening and a fluororubber check seal for excellent sealing.
