Crawler Drilling Rig

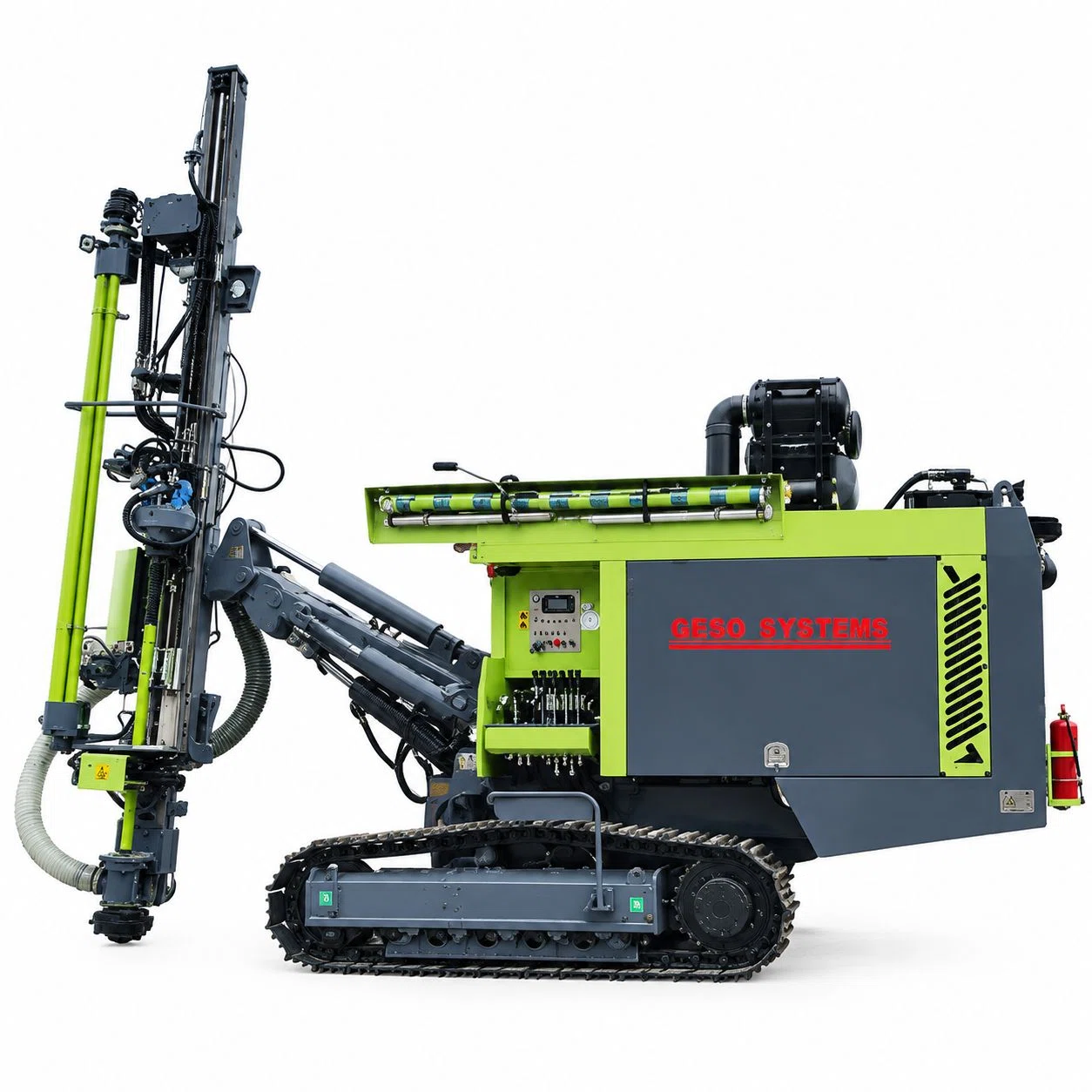

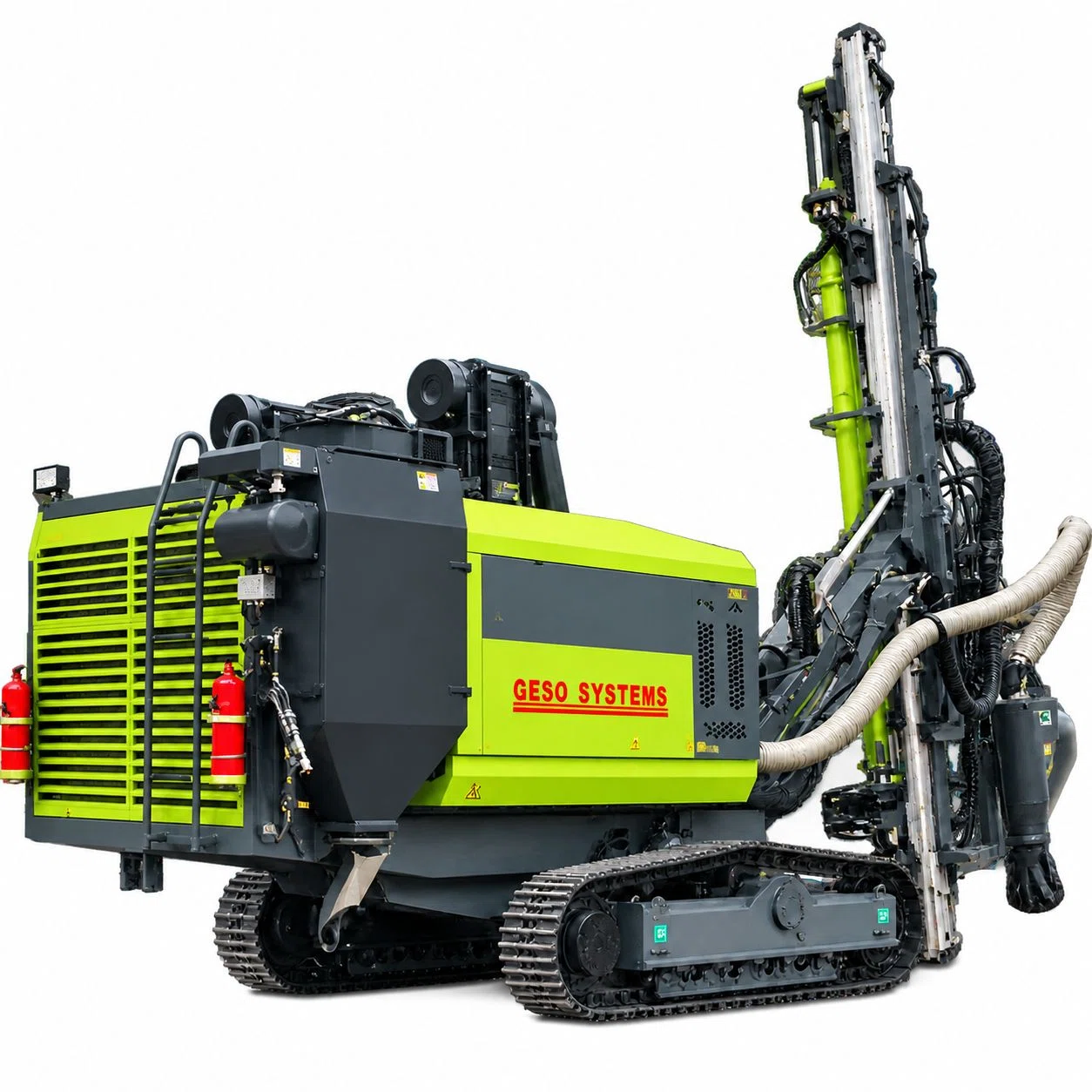

BACZ-101 Automatic Open Pit DTH Drilling Rig

BACZ-101 is a heavy-duty hydraulic DTH drilling rig developed for high-efficiency open pit drilling applications.

The machine integrates:

• Automatic drill rod handling system
• High torque rotary drilling system
• Large-area dust collection system
• Heavy-duty crawler chassis
• Intelligent hydraulic control system

Key Features

1. Automatic Drill Rod Handling System

Improve Drilling Efficiency and Reduce Manual Operation

BACZ-101 adopts a fully automatic drill rod receiving and unloading system, reducing operator workload and improving drilling continuity.

Compared with traditional manual rod changing systems, the automatic design provides:

• Faster drilling cycle
• Reduced labor requirement
• Safer operation
• Higher productivity

2. Powerful Hydraulic Rotary Drilling System

Stable Performance in Hard Rock Conditions

The advanced rotary system provides strong torque output and stable rotation performance.

Technical advantages:

• High torque capability
• Smooth drilling operation
• Reliable performance under heavy load
• Suitable for different rock formations

Main parameters:

3. Efficient Dust Collection System

Cleaner Drilling Environment and Improved Working Efficiency

Open pit drilling generates large amounts of dust during operation.

BACZ-101 is equipped with:

• 14-core large-area dust filtration system
• Two-stage air filtration structure
• High-efficiency dust removal capability

• Reduced dust pollution
• Longer component service life
• Better operator working conditions
• Improved drilling reliability

4. Heavy Duty Hydraulic Crawler Structure

Designed for Challenging Mining Environments

The crawler chassis provides excellent mobility and stability on uneven terrain.

Features:

• Strong climbing ability
• Stable operation
• Stable operation

Travel speed:Fast: 3 km/h，Slow: 1.5 km/h

5. Reliable Diesel Power System

Strong Power for Continuous Drilling Operations

BACZ-101 is powered by:

Yuchai 162kW Diesel Engine

Advantages:

• Strong power output
• Reliable operation
• Easy maintenance
• Suitable for harsh outdoor environments

6. Lightweight Aluminum Alloy Feed Beam

Improved Drilling Accuracy and Efficiency

The aluminum alloy feed beam design provides:

• Lower structural weight
• Faster feeding movement
• Improved drilling stability

Technical parameters:

Feed stroke:

3400 mm

Feed system:

Cylinder + wire rope

Application Areas

Mining DTH Drilling

Used for:

• Open pit mining
• Ore extraction
• Blasting hole drilling

Quarry Drilling

Suitable for:

• Granite quarry
• Limestone quarry
• Aggregate production

Construction Rock Drilling

Applications:

• Road construction
• Foundation preparation
• Rock excavation

Recommended Air Compressor Solution

External Screw Compressor for DTH Drilling Applications

Different drilling conditions require different compressed air requirements.

GESO provides matching screw compressor solutions according to:

• Drilling diameter
• Hole depth
• Rock hardness
• Working environment

• High pressure capability
• Stable airflow output
• Diesel-powered mobility
• Continuous operation

• Mining blasting drilling
• Quarry hole drilling
• Remote construction projects

Why Choose GESO DTH Drilling Rig?

1. Professional Mining Equipment Manufacturer

GESO provides integrated drilling solutions including:

• DTH drilling rigs
• Screw air compressors
• Complete drilling solutions

2. High Efficiency Automatic Operation

Automatic rod handling reduces downtime and improves overall drilling productivity.

3. Flexible Compressor Configuration

Instead of limiting customers to a fixed compressor system, GESO provides flexible external compressor matching solutions.

Customers can select suitable compressor models according to actual working conditions.

4. Reliable Performance in Harsh Environments

Designed for:

• Dusty mining sites
• Remote areas
• Continuous outdoor operation
