Pressure Range & Safety Configuration: A Field Engineer’s Checklist for Compressor Selection

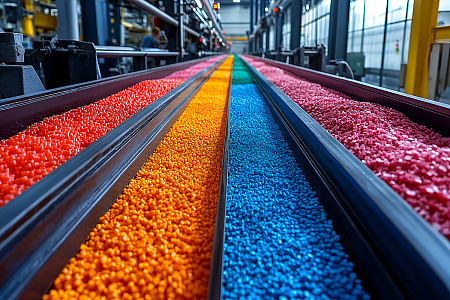

Last quarter, I was called to a plastics plant in Thailand. Their production line had been down for 18 hours. The root cause? A screw air compressor that had been running flawlessly for three years suddenly seized overnight.

When I pulled the logs, the high-temperature alarm had triggered—but the thermal sensor was never wired into the emergency shutdown circuit. The compressor kept running until the rotor welded itself to the casing.

That incident wasn't a machine failure. It was a configuration failure.

Over the years, I have seen similar stories across the globe—from petrochemical sites in the Middle East to food processing plants in Europe. The common thread is rarely the compressor type. It is almost always an oversight in safety configuration relative to the actual operating pressure.

This guide is not a theoretical paper. It is a practical checklist drawn from real breakdowns, covering screw air compressor, high-pressure piston, and centrifugal units, so you can match the right protective layers to your specific pressure range.

Low-Pressure Range (Up to 15 bar / 220 psi) — The Hidden Risks in "Simple" Systems

This is the most common pressure band, and the screw air compressor dominates this space. Because these systems are perceived as "standard," many operators assume basic protection is sufficient. In practice, I see three recurring gaps:

1. Temperature logic, not just temperature switches

Many base-model screw compressors use a simple bimetal temperature switch. It trips at 120°C, but by then, the oil has already coked. A properly configured screw air compressor should include a PT100 RTD sensor with a hardwired logic interlock—not just a soft alarm in the PLC. The controller must physically cut power at 110°C and require a manual reset. This single feature prevents 70% of premature rotor failures I encounter globally.

2. Differential pressure monitoring across the oil filter

A clogged oil filter starves the bearings. Most compressor packages only monitor final discharge pressure. But a well-specified screw air compressor should have a delta-P switch across the oil filter. When the pressure differential exceeds 2.5 bar, the controller should flag a service alert before the bypass valve opens and unfiltered oil circulates. This is a low-cost add-on that pays for itself in one avoided overhaul.

3. Phase protection and rotation verification

I have seen reverse rotation damage in Indonesia, Nigeria, and Brazil—always after a site power reconnection. A properly configured screw compressor must include a phase sequence relay that physically prevents startup if rotation is incorrect. This is not optional; it is a fundamental layer that should be specified in every purchase order.

For low-pressure duty, a twin-lobe screw air compressor with these three protections offers the best balance of reliability and safety. Do not accept a package that lacks hardwired thermal and phase protection, regardless of the price advantage.

Medium-Pressure Range (15–40 bar / 220–580 psi) — Managing Thermal Cascades in Piston Compressors

As soon as you cross 15 bar, the market shifts toward multi-stage piston compressors. The safety challenge here is not pressure containment alone—it is thermal gradient management.

A few years ago, I investigated a fire at a PET preform plant in India. A two-stage piston compressor experienced a blocked intercooler. The second-stage discharge temperature rose to 230°C, igniting carbon deposits in the discharge valve. The flame flashed back into the crankcase.

The investigation revealed that the compressor only monitored final discharge temperature. The intermediate stage had no independent protection.

For medium-pressure piston units, I recommend three non-negotiable safety layers:

■ Independent temperature monitoring on every compression stage. Each cylinder discharge must have its own thermocouple, and the PLC must trigger a shutdown if any stage exceeds its design limit—not just the final outlet.

■ Mechanical safety valves with tell-tale indicators. In high-pressure services, safety valves can lift and reseat but fail to fully close, causing micro-leaks. Specify valves with a lifting lever and visual indicator so operators can confirm whether the valve has relieved. This is particularly important in remote or unattended sites.

■ Automated condensate drains with manual backup. Moisture is unavoidable in medium-pressure compression. Automatic drains fail—I have seen solenoid coils burn out in humid environments. Every automatic drain should be backed by a manual isolation and drain valve, with a written procedure for weekly manual checking.

High-Pressure Range (Above 40 bar / 580 psi) — The API Standard as Your Baseline

For applications exceeding 40 bar—gas filling stations, pipeline testing, or high-pressure nitrogen boosting—safety configuration shifts from best practice to engineering codes. In this arena, the screw air compressor is rarely used; piston or diaphragm units take over. However, the safety principles overlap.

Based on API 618 (reciprocating compressors) and ASME B31.3 piping requirements, here is what every high-pressure package must include:

1. Double overpressure protection in series. A single relief valve is insufficient. The configuration should include a primary relief valve set at 5% above operating pressure, and a secondary valve set at 8%, discharging to a safe vent header. This redundancy has prevented catastrophic ruptures in two plants I have worked with in the United States.

2. Vibration and rod-drop monitoring. High-pressure piston compressors experience significant mechanical stress. I strongly recommend

■ Proximity probes on each crosshead guide to detect rider ring wear

■ Vibration transducers on each cylinder head, with shutdown logic if velocity exceeds 25 mm/s

3. Crankcase oil pressure with low-shutdown. In high-pressure service, oil pressure sustains the bearings and also operates the capacity-control unloaders. A low oil pressure switch that immediately shuts down the driver is mandatory—not a warning light, but a physical shutdown relay.

Centrifugal Compressors — Surge Protection Is Personnel Protection

Centrifugal compressors operate at very high speeds, often with large impellers. The most dangerous safety event is not overpressure—it is surge.

When a centrifugal compressor surges, the rotor can shift axially by several millimeters in milliseconds. The resulting vibration can rupture discharge piping. I have seen a surge event in a European chemical plant shear a 10-inch stainless steel flange.

For centrifugal units, these safety features are non-negotiable:

■ Anti-surge control with dedicated fast-acting blow-off valves. The valve response time must be under 1 second. When specifying, ask the supplier for the valve step-response test report. If they cannot provide it, consider it a red flag.

■ Axial position monitoring (thrust bearing wear). Two independent proximity probes measuring shaft displacement should be installed. If axial movement exceeds 0.3 mm (depending on rotor design), the system must initiate a controlled shutdown before thrust bearings fail.

■ Dry gas seals with vent flow monitoring. For applications with hazardous gases, tandem dry gas seals are standard. But the real safety is in the leakage vent flow meter. A gradual increase in vent flow indicates seal deterioration and provides weeks of early warning—if the monitoring is installed and trended.

Three Universal Safety Rules — No Matter Which Compressor Type You Choose

Across every site I have visited globally—whether a screw air compressor in an Australian mine, a piston compressor in a Russian gas facility, or a centrifugal unit in a German refinery—these three rules hold true:

1. Manual isolation valves at the compressor discharge. Electronic shutdowns can fail. A physical ball valve or gate valve at the discharge flange gives operators the ability to isolate the compressor from the system during emergencies, even if the control system is unresponsive.

2. Sight glass on lubricated systems. For oil-flooded screw compressors, the oil return line sight glass is a simple, overlooked safety device. If you cannot see oil flowing during loaded operation, the oil scavenge line is blocked. Without this visual confirmation, the compressor will gradually lose oil, leading to bearing starvation. I recommend specifying a sight glass on every oil-flooded screw air compressor as a standard line item.

3. Calibration records for every pressure and temperature sensor. I cannot stress this enough. A sensor that reads 5°C low will defeat your entire safety configuration. Ensure your supplier provides factory calibration certificates traceable to international standards (ISO 17025). Moreover, schedule annual recalibration—this is the single most cost-effective safety investment you can make.

Making the Final Choice — A Decision Matrix Based on Your Duty

If you are in the planning phase for a new compressor station, here is a simplified framework I share with clients during site assessments:

Why This Matters — Beyond Compliance

I have worked on compressor systems across six continents. The most successful operators do not view safety configuration as a cost line. They view it as insurance that pays dividends in uptime, maintenance predictability, and personnel trust.

A correctly configured screw air compressor with proper thermal and filter protection will outlast a poorly configured unit by three to five years, with 40% fewer unplanned stops. A well-instrumented piston compressor will alert you to a failing intercooler weeks before it becomes a fire hazard. A surge-protected centrifugal unit will keep your piping intact for the full 20-year design life
