Oil-Free Scroll Compressor

The oil-free scroll compressor from Geso is small and quiet and does not require oil lubrication,so the air is clean.Provide You With Oil And Water Free, High Quality Compressed Air. Geso is a global manufacturer and supplier of screw air compressors. We are engaged in air separation system equipment for many years, and are committed to the research and production of air compressor systems. We can customize non-standard products and have a good price advantage. Our products cover the whole world. We look forward to being your long-term partner.

Send Inquiry

Product Description
Technical Parameter
Product Image
Video

Gesosystems® is a professional China Oil-Free Scroll Compressor manufacturer and supplier, if you are looking for the best Oil-Free Scroll Compressor, consult us now! Geso oil-free scroll air compressor：In the unlikely event of a failure, the multiple compression Air Ends housed in the chassis will back up the switchover without having to worry about stopping the compressed air supply.

Oil-free Scroll Air Compressor Details

Geso Integrated Design

■ The air ends are made of original British Geso components, which ensure low running costs while prolonging the service life.

■ Simple case is small, quiet, clean and beautiful, and can be placed anywhere.

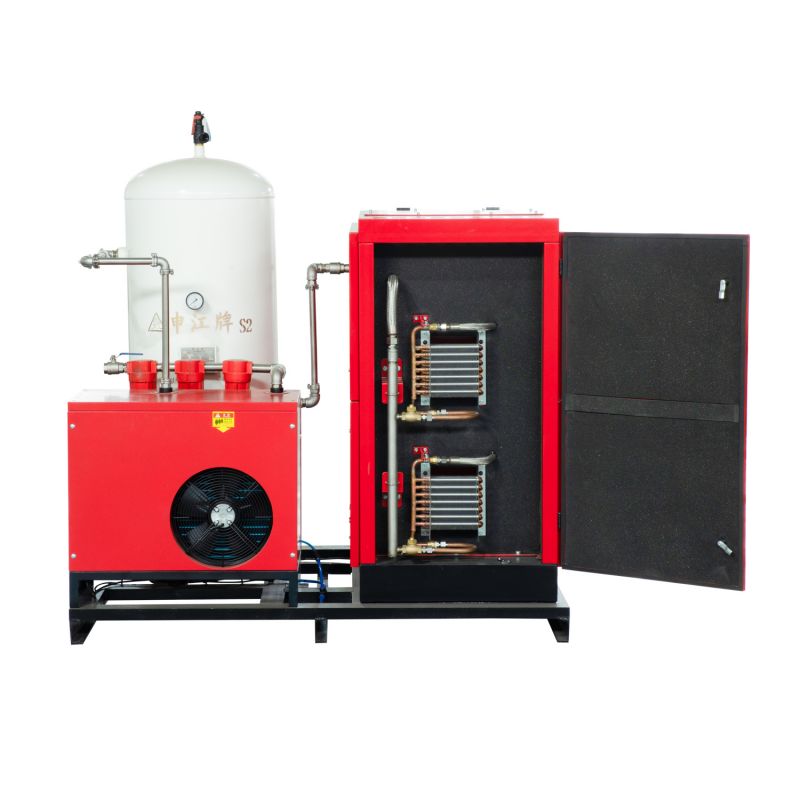

Separate Cooling System

Ensure the exhaust temperature≤ ambient temperature +15℃, block type frame structure, easy to check the maintenance

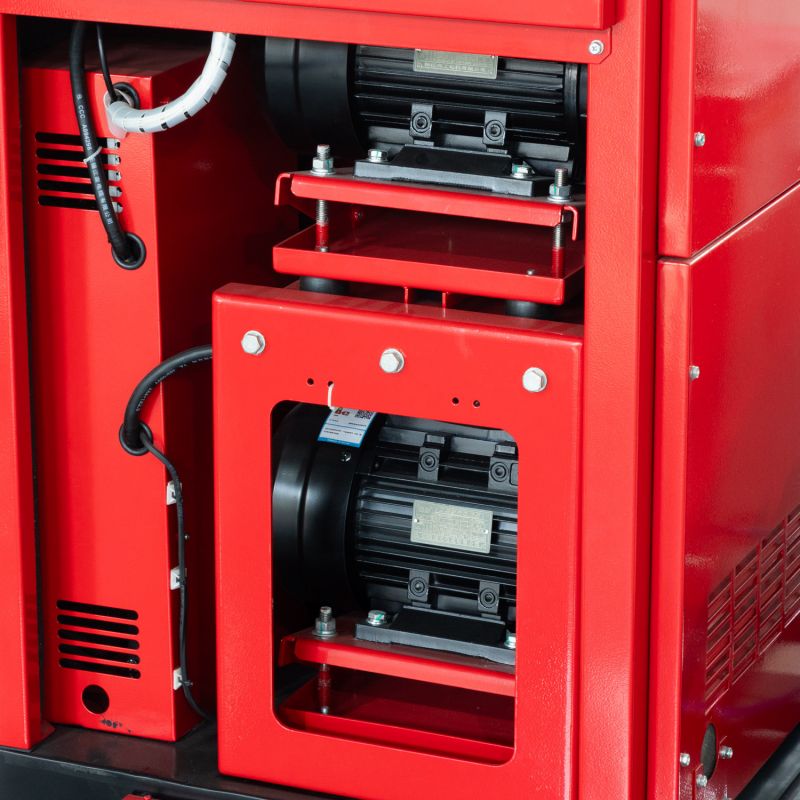

Automatic belt adjustment

Adjusts the belt tension by the motor's self-weight adjustment method, eliminating the need for human adjustment.

Multi-level Intelligent Control

By placing multiple compression Air Ends in one chassis, free-running multi-stage control is carried out according to the actual demand for compressed air volume, thus eliminating unnecessary operation and achieving energy-saving results.

（In the unlikely event of a failure, the multiple compression Air Ends housed in the chassis will back up the switchover without having to worry about stopping the compressed air supply.)

Model	Working Pressure （Mpa）	Air Delivery （m³/min）	Power （kw）	Dimensions (LWH) mm			Weight （kg）	Outlet Pipe Diameter	Pcs	Remark
BAE-4WS	0.8	0.4	3.7	610	730	930	200	3/4 Ball valve	1*0.4
BAE-4WS	1	0.33		610	730	930	200	3/4 Ball valve	1*0.4
BAE-4WS-ND	0.8	0.4		1810	820	1700	350	3/4 Ball valve	1*0.4	Built-in integrated 200L
BAE-4WS-ND	1	0.33		1810	820	1700	350	3/4 Ball valve	1*0.4	Built-in integrated 200L
BAE-4WS-WD	0.8	0.4		1400	840	1490	300	1 Ball valve	1*0.4	External integrated 200L
BAE-4WS-WD	1	0.33		1400	840	1490	300	1 Ball valve	1*0.4	External integrated 200L
BAE-5.5WS	0.8	0.6	5.5	610	730	930	220	3/4 Ball valve	1*0.6
BAE-5.5WS	1	0.49		610	730	930	220	3/4 Ball valve	1*0.6
BAE-5.5WS-ND	0.8	0.6		1810	820	1700	380	3/4 Ball valve	1*0.6	Built-in integrated 200L
BAE-5.5WS-ND	1	0.49		1810	820	1700	380	3/4 Ball valve	1*0.6	Built-in integrated 200L
BAE-5.5WS-WD	0.8	0.6		1400	840	1490	320	1 Ball valve	1*0.6	External integrated 200L
BAE-5.5WS-WD	1	0.49		1400	840	1490	320	1 Ball valve	1*0.6	External integrated 200L
BAE-7.5WS	0.8	0.8	7.5	1200	700	1200	350	1 Ball valve	2*0.4
BAE-7.5WS	1	0.66	7.5	1200	700	1200	350	1 Ball valve	2*0.4
BAE-11WS	0.8	1.2	11	1200	700	1200	400	1 Ball valve	2*0.6
BAE-11WS	1	0.98	11	1200	700	1200	400	1 Ball valve	2*0.6
BAE-16.5WS	0.8	1.8	16.5	1200	700	1670	500	1 Ball valve	3*0.6
BAE-16.5WS	1	1.5	16.5	1200	700	1670	500	1 Ball valve	3*0.6
BAE-22WS	0.8	2.4	22	1550	1200	1150	800	1 Ball valve	4*0.6
BAE-22WS	1	2	22	1550	1200	1150	800	1 Ball valve	4*0.6
BAE-27WS	0.8	3	27.5	1550	1200	1150	1080	1 Ball valve	5*0.6
BAE-27WS	1	2.4	27.5	1550	1200	1150	1080	1 Ball valve	5*0.6
BAE-33WS	0.8	3.6	33	1550	1200	1150	1200	1 Ball valve	6*0.6
BAE-33WS	1	3	33	1550	1200	1150	1200	1 Ball valve	6*0.6
BAE-38.5WS	0.8	4.2	38.5	2150	1450	1700	1400	2 Ball valve	7*0.6
BAE-38.5WS	1	3.6	38.5	2150	1450	1700	1400	2 Ball valve	7*0.6
BAE-44WS	0.8	4.8	44	2150	1450	1700	1520	2 Ball valve	8*0.6
BAE-44WS	1	4	44	2150	1450	1700	1520	2 Ball valve	8*0.6
BAE-49WS	0.8	5.4	49.5	2150	1450	1700	1650	2 Ball valve	9*0.6
BAE-49WS	1	4.5	49.5	2150	1450	1700	1650	2 Ball valve	9*0.6
